D740

  • Description
  • More Details
  • Specifications

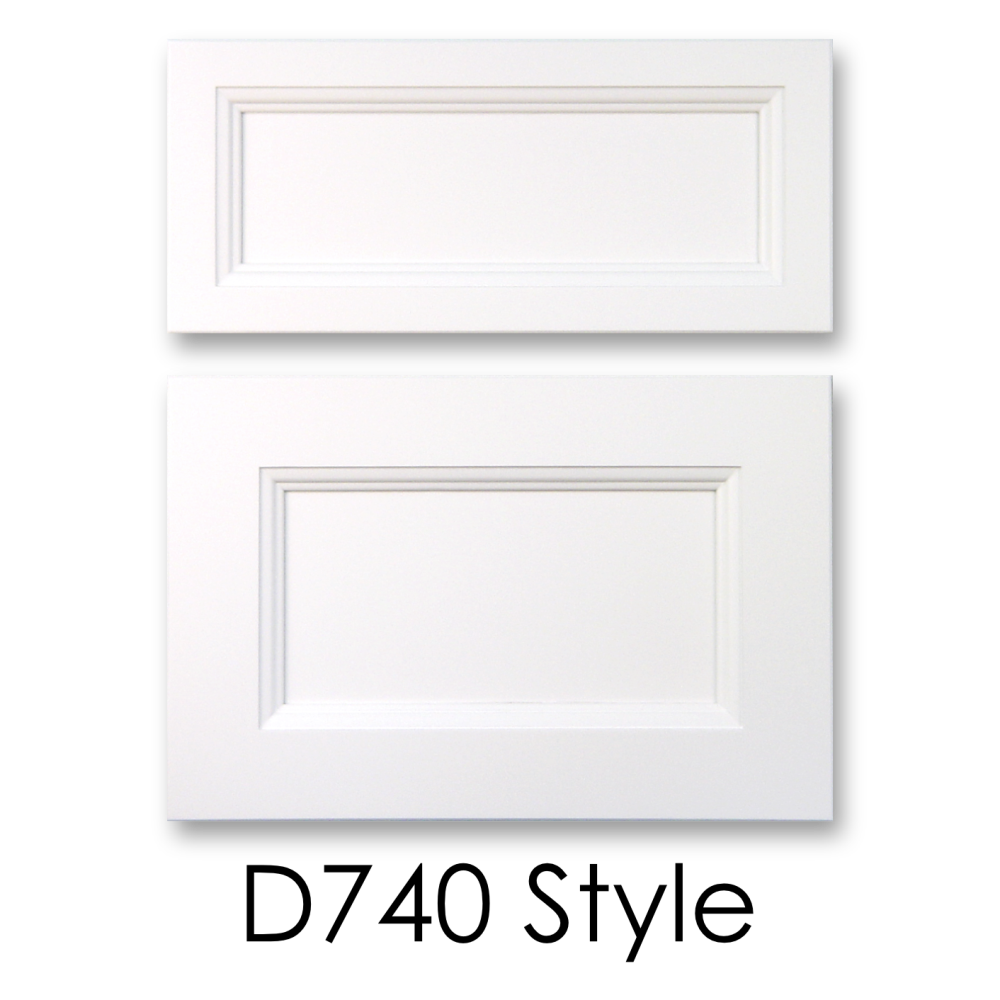

Drawer Front Style #D740 (Matches #740 Doors)

  • All solid wood construction, 5 pieces with 1/2" thick panel flat on face
  • Drawer front has horizontal grain on the panel unless ordered otherwise
  • The standard rail width will be used for drawer fronts that are greater or equal to the minimum height. Drawer fronts less than the minimum height will use the alternative rail width.
  • Corner construction is mitered using 1/2" deep tongue and groove
  • Mitered frame - stiles and rails must be the same width

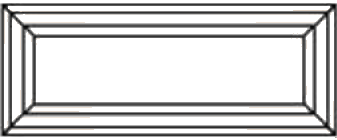

Line Drawing

Panel & Inside Frame Detail

Stile Width 2-3/8"
Rail Width 2-3/8"
Maximum Size 48" x 24"
Minimum Size 7" x 7"
Alternative Rail Width 1-1/2"
Minimum Alternative Size 5-1/4" x 5-1/4"
