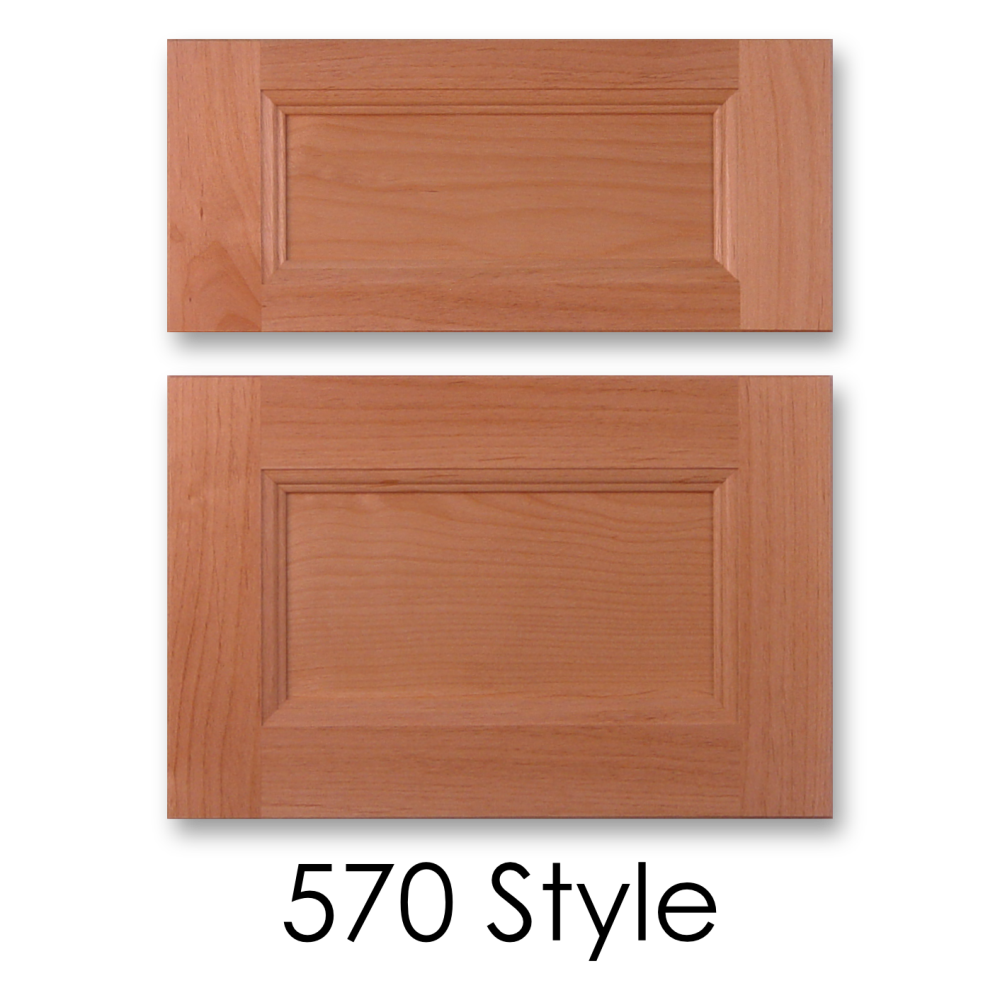

Drawer Front Style #570 (Matches #700 Doors)

  • All solid wood construction, 5 pieces with 1/2" thick panel flat on face
  • Drawer front has horizontal grain on the panel unless ordered otherwise
  • The standard rail width will be used for drawer fronts that are greater or equal to the minimum height. Drawer fronts less than the minimum height will use the alternative rail width. Drawer fronts less than the minimum alternative height can be trimmed to the minimum trimmed size.

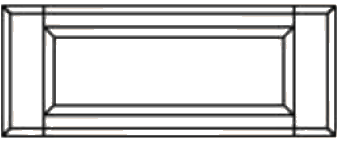

#570 Drawer Front Line Drawing

Line Drawing

#570 Drawer Front Cut-Out View

Panel & Inside Frame Detail

Stile Width 2-3/8"
Rail Width 2-3/8"
Maximum Size 48" x 24"
Minimum Size 7" x 7"
Alternative Rail Width 1-1/2"
Minimum Alternative Size 7" x 5-1/4"
Minimum Trimmed Size 5-3/4" x 4-1/4"
