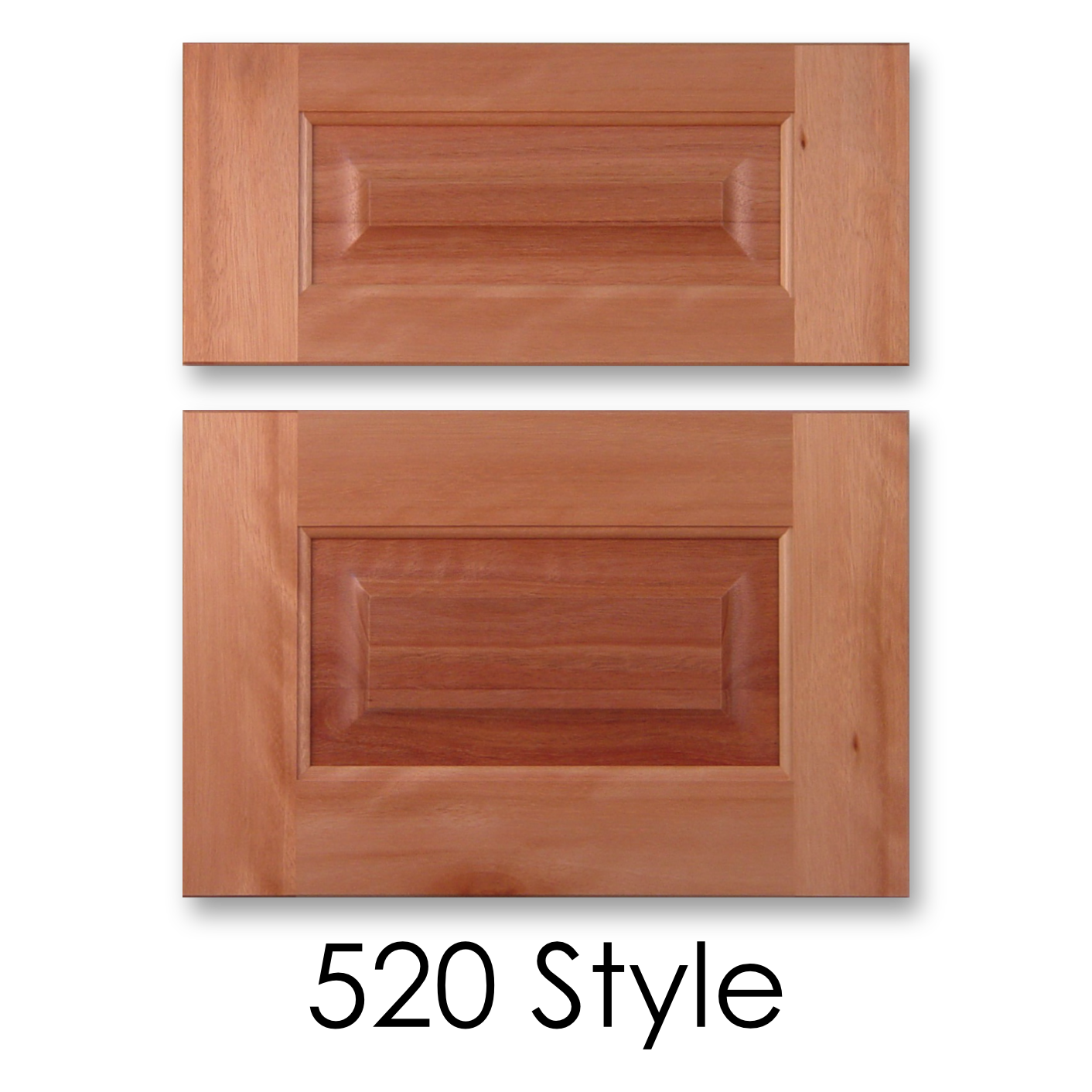

Drawer Front Style #520 (Matches #200 Doors)

  • All solid wood construction, 5 pieces
  • Drawer front has horizontal grain on the panel unless ordered otherwise
  • The standard rail width will be used for drawer fronts that are greater or equal to the minimum height. Drawer fronts less than the minimum height will use the alternative rail width. Drawer fronts less than the minimum alternative height can be trimmed to the minimum trimmed size.

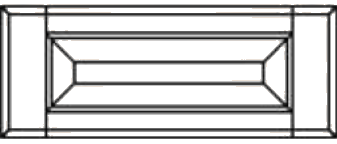

Line Drawing of #520 Drawer Front

Panel & Inside Frame Detail

Stile Width 2-3/8"
Rail Width 2-3/8"
Maximum Size 48" x 24"
Minimum Size 7-3/4" x 8"
Alternative Rail Width 1-1/2"
Minimum Alternative Size 7-3/4" x 6"
Minimum Trimmed Size 6-1/2" x 5"
