460

  • Description
  • More Details
  • Specifications

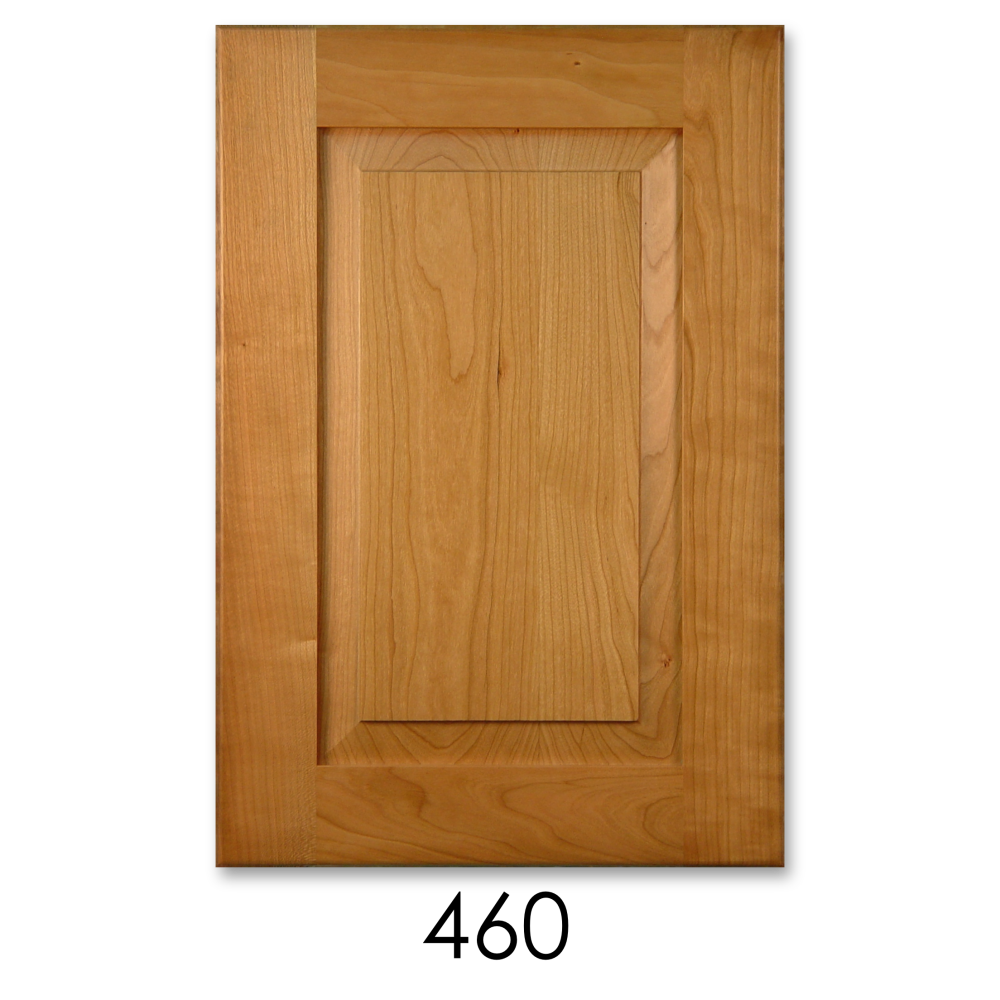

Door shown in Premium Cherry with outside edge profile 'K'

• Series 460 doors are constructed of 100% solid wood
• The natural range of colors allowed in all wood species including limited amounts of sap and mineral streaks
• 'Select' woods are available in most woods for a higher grade of color and grain match. 'Premium' woods are available for some woods. See Wood Species for details of 'Select' and 'Premium' grades.
• Series 460 doors have 13/16" thick frames, 5/4 (1") thick frames available for most woods
• Optional square/round pegs can be added to the corners of most door styles doors, see Door Options
• Standard outside edge profiles 'A' through 'M' are available for 460 series doors

• NOTE: this door has a different panel (solid wood 'Traditional' raised panel) within the frame compared to the other 200 Series doors! See 'Panel & Inside Frame Detail' below.

Panel and inside frame detail



Outside edge profile K shown on door



Line drawing of #460 door

Stile Width: 2/3/8"
Rail Width: 2-3/8"
Minimum Door Size* (WxH): 7-3/4" x 7-3/4"
Minimum Trimmed Door Size* (WxH): 6" x 6"
Maximum Door Size (WxH): 26" x 96"
Extra Center Rail Required At: 48"
Drawer Front Compliments This Door: #500 and #546
Glass or Open Frame Door Available: Yes
* If one minimum is used from above specs, add 2" to other.
