600

Scherr's Cabinet & Doors 600 Style Doors. Shown here in MDF, painted Sherwin Williams' Extra White, and has an 'A' outside profile.
  • Description
  • More Details
  • Specifications

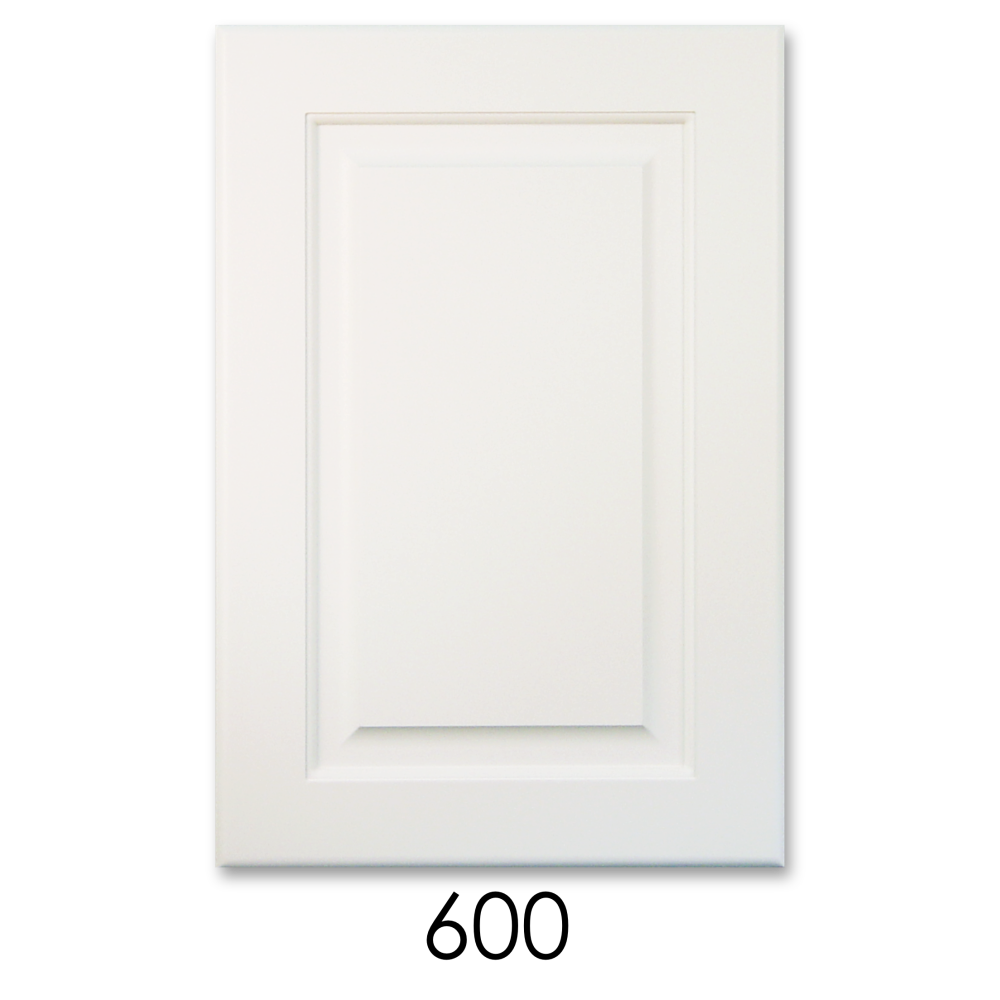

MDF door shown painted Extra White with outside edge profile 'A'

This style has recently been updated

• The medium-density fiberboard (MDF) used to manufacture the Series 600 doors were designed specifically for this purpose and meets California's CARB 2 regulations. This product has excellent machining properties.
• Glass-ready open-frame frame only doors available, see specifications tab
• Lite mullions are available for the Series 600, 602 and 604 doors. Custom spacing and designs are available, attach a drawing to your order - expect additional charges. Mullions are 1" wide on the 600 series doors. All designs are prepared for a one-piece square glass or insert (not included.)
• Doors over 24" tall can have optional crossbar(s) added per your request. Unlike 5 piece frame and panel doors, the crossbars are not needed for the structural integrity of the door, they are purely cosmetic.
• Standard outside edge profiles 'A' through 'M' are available for 600 series doors
• Series 600 doors cannot be ordered "No Edge Profile"

 Cross-Section of Scherr's 600 Style MDF Door

Cross-Section View



Scherr's 'A' Outside Profile

Outside edge profile A shown on door

Line Drawing of #600 Door

Stile Width: 2/3/8"
Rail Width: 2-3/8"
Minimum Door Size* (WxH): 8" x 8"
Minimum Trimmed Door Size* (WxH): 6" x 6"
Maximum Door Size** (WxH): 30" x 84"
Extra Center Rail Required At: NA
Drawer Front Compliments This Door: #560 and #562
Glass or Open Frame Door Available: Yes
Open Frame with Mullion Lites Available: Yes
Additional panels (crossbars) per door available: Yes.  Panels will be divided equally.  Custom spacing may be available, contact us for details.  Additional crossbars are cosmetic only, they do not add to the structure of the door.
* If one minimum is used from above specs, add 2" to other.
** Doors cannot exceed the maximum sizes.
