905

#905, Beech, "F"
  • Description
  • More Details
  • Specifications

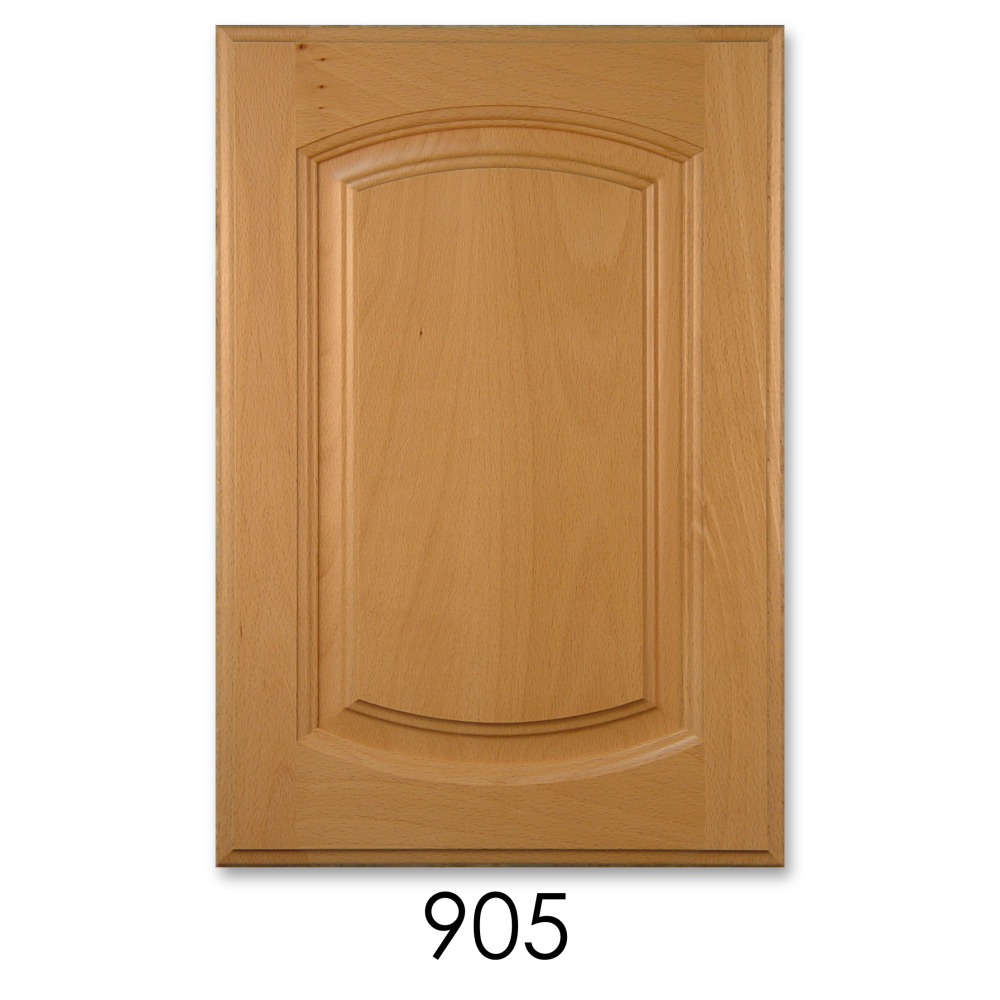

Door shown in Beech with outside edge profile "F"

• Series 905 doors are constructed of 100% solid wood.
• The natural range of colors allowed in all wood species including limited amounts of sap and mineral streaks.
• "SELECT" woods are available in most woods for a higher grade of color and grain match (Select White Pine only available with a solid panel.) “PREMIUM” woods are available for some woods, center panels have to be upgraded to solid wood. See Wood Species for details of Select and Premium grades.
• Series 905 doors have 13/16" thick frames, 5/4 (1") thick frames available for most woods
• OPTIONAL square/round pegs can be added to the corners of most door styles doors, see Door Options
• Standard outside edge profiles “A” through “M” are available for 905 series doors

Panel and inside frame detail



Outside edge profile F shown on door



Line drawing of #905 door

Stile Width: 2-3/8"
Rail Width: 2-3/8"
Minimum Door Size* (WxH): 7-5/8" x 10-1/4"
Minimum Trimmed Door Size* (WxH): 5-7/8" x 8-1/2"
Maximum Door Size (WxH): 26" x 96"
Extra Center Rail Required At: 48"
Arched Rail Height (at side): Rail varies by width
Drawer Front Compliments This Door: #500 and #590
Glass or Open Frame Door Available: Yes
Waterfall Frame Thickness: This frame style cannot be ordered less than 13/16" thick
* If one minimum is used from above specs, add 2" to other
