900

#900, Lyptus, "F"

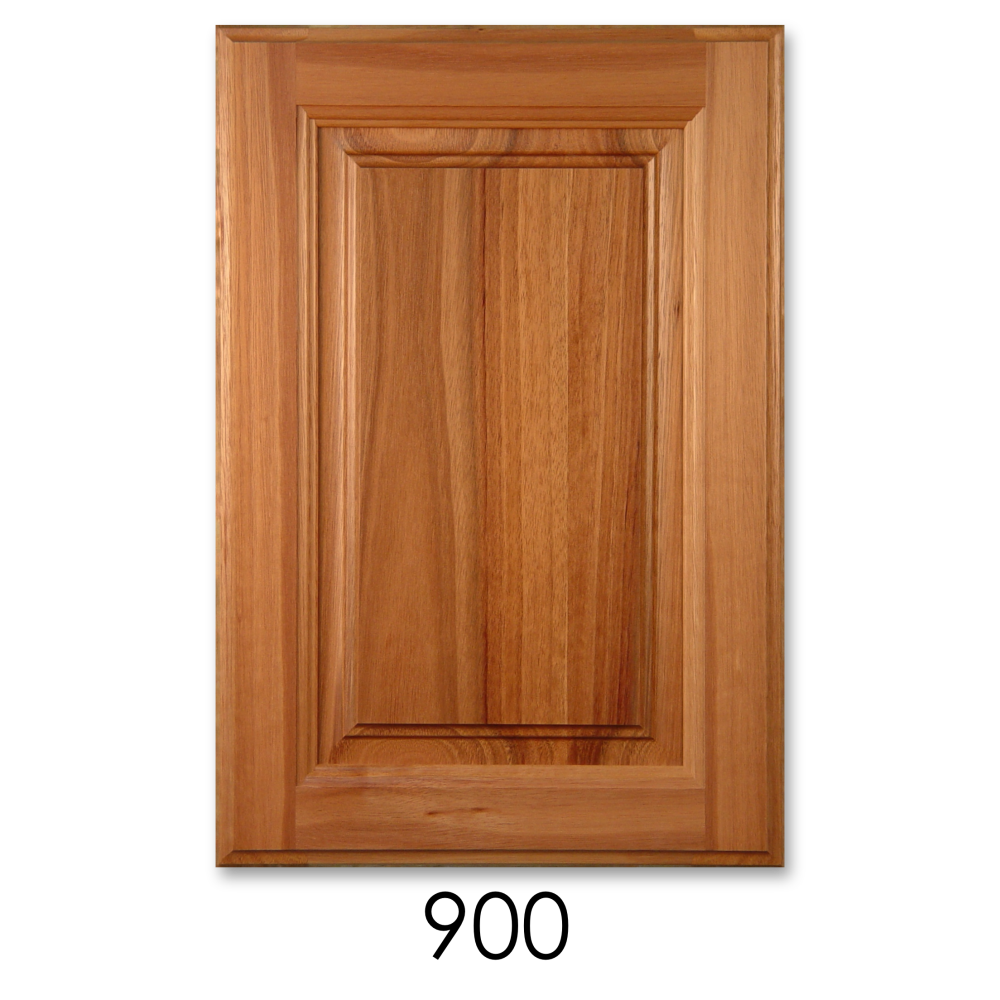

Door shown in Lyptus (Lyptus wood is currently unavailable) with outside edge profile "F"

Series 900 doors are constructed of 100% solid wood
The natural range of colors allowed in all wood species including limited amounts of sap and mineral streaks
"SELECT" woods are available in most woods for a higher grade of color and grain match (Select White Pine only available with a solid panel.) “PREMIUM” woods are available for some woods, center panels have to be upgraded to solid wood. See Wood Species for details of Select and Premium grades.
Series 900 doors have 13/16" thick frames, 5/4 (1") thick frames available for most woods
OPTIONAL square/round pegs can be added to the corners of most door styles doors, see Door Options
Standard outside edge profiles “A” through “M” are available for 900 series doors

Panel and inside frame detail

Outside edge profile F shown on door

Line drawing of #900 door

Stile Width:	2-3/8"
Rail Width:	2-3/8"
Minimum Door Size* (WxH):	7-5/8" x 7-5/8"
Minimum Trimmed Door Size* (WxH):	5-7/8" x 5-7/8"
Maximum Door Size (WxH):	26" x 96"
Extra Center Rail Required At:	48"
Drawer Front Compliments This Door:	#500 and #590
Glass or Open Frame Door Available:	Yes
Waterfall Frame Thickness:	This frame style cannot be ordered less than 13/16" thick
*	If one minimum is used from above specs, add 2" to other
