Scherr's Cabinet & Doors 703 Style Doors. Shown here in Hickory with an 'I' outside profile.
  • Description
  • More Details
  • Specifications

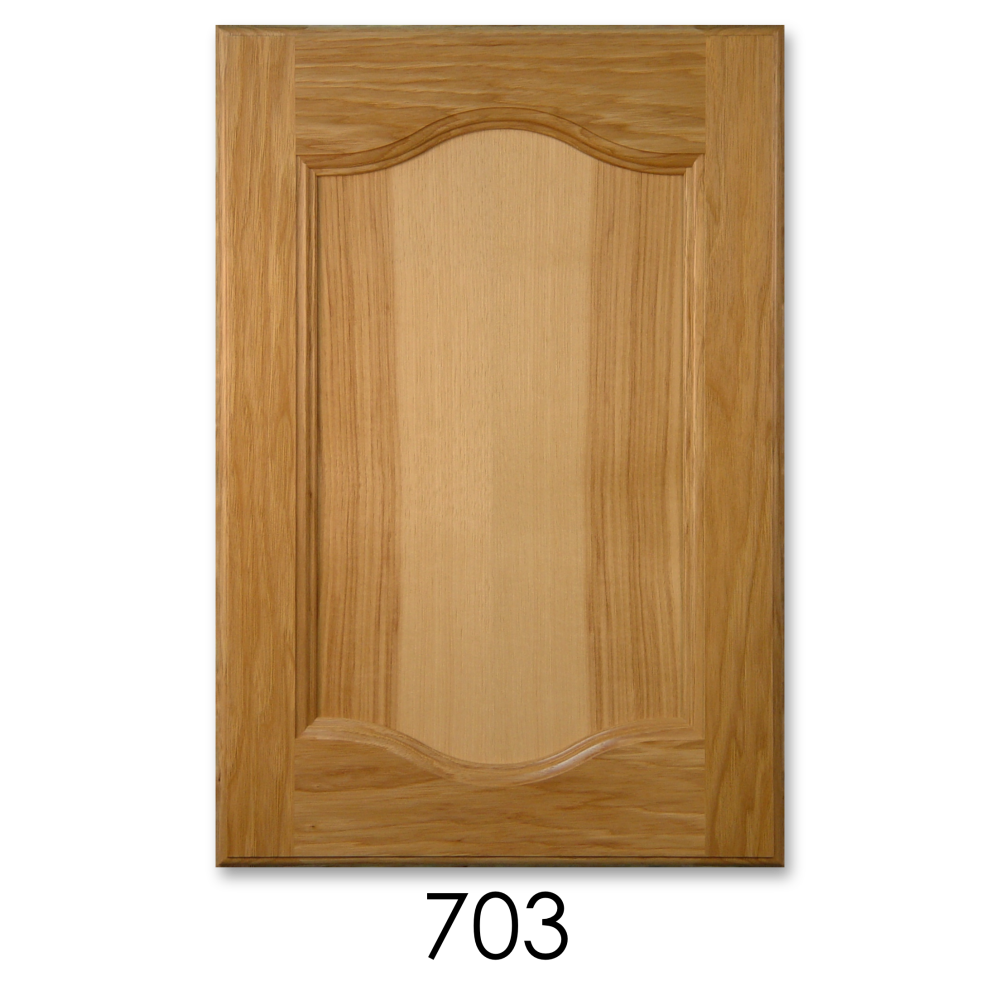

Door shown in Hickory with outside edge profile 'I'

• Series 700 doors have solid wood frames with 1/4" plywood panels - solid wood panel upgrade is available
• The natural range of colors allowed in all wood species including limited amounts of sap and mineral streaks
• 'Select' woods are available in most woods for a higher grade of color and grain match (Select White Pine only available with a 1/2" solid wood panel.) 'Premium' woods are available for some woods, center panels have to be upgraded to solid wood. See Wood Species for details of 'Select' and 'Premium' grades.
• Series 700 doors have 13/16" thick frames, 5/4 (1") thick frames available for most woods
• Optional square/round pegs can be added to the corners of most door styles doors, see Door Options
• Standard outside edge profiles 'A' through 'M' are available for 700 series doors

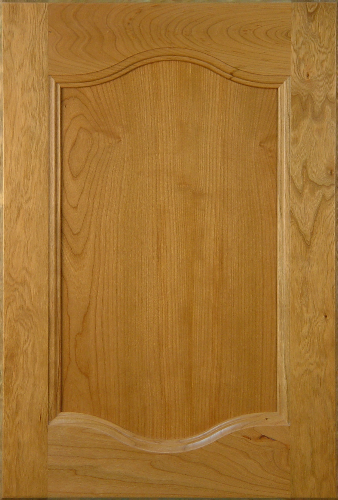

#703 Door Below in Select Cherry, "K":

#703

Panel and inside frame detail



Outside edge profile I shown on door



Line drawing of #703 door

Stile Width: 2/3/8"
Rail Width: 2-3/8"
Arched Rail Height: 3-1/2" at side
Minimum Door Size* (WxH): 7-1/2" x 8-3/4"
Minimum Trimmed Door Size* (WxH): 5-3/4" x 7"
Maximum Door Size (WxH): 26" x 96"
Extra Center Rail Required At: 48"
Drawer Front Compliments This Door: #500 and #570
Glass or Open Frame Door Available: Yes
Solid Wood Panel Upgrade Available: No
Waterfall Frame Thickness: This frame style cannot be ordered less than 13/16" thick
* If one minimum is used from above specs, add 2" to other.
