114

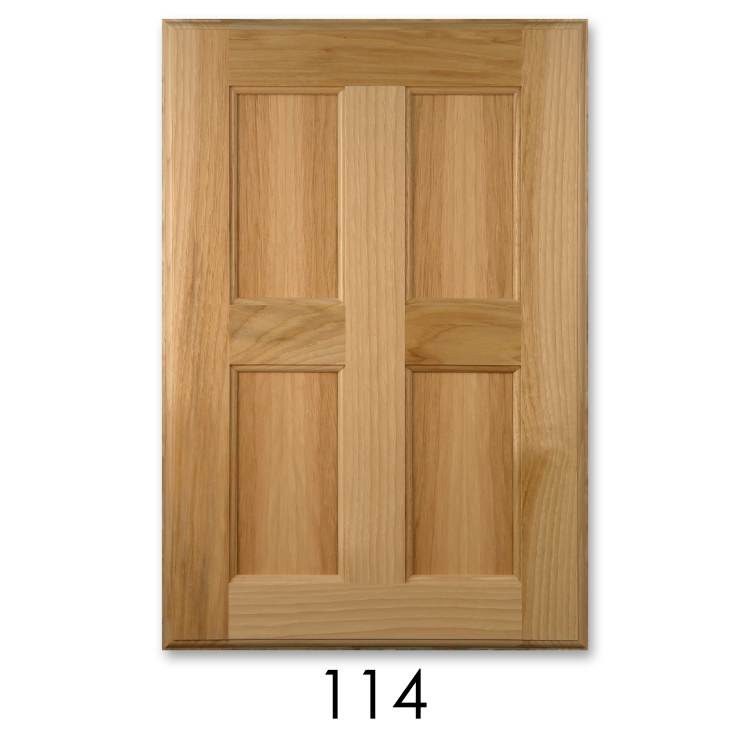

Scherr's Cabinet & Doors 114 Style Doors. Shown here in Hickory with a 'D' outside profile.
  • Description
  • More Details
  • Specifications

Door shown in Hickory with outside edge profile 'D'

• Series 114 doors have solid wood frames with 1/4" plywood panels - solid wood panel upgrade is available
• The natural range of colors allowed in all wood species including limited amounts of sap and mineral streaks
• Select woods are available in most woods for a higher grade of color and grain match (Select White Pine only available with a 1/2" solid panel.) Premium woods are available for some woods, center panels have to be upgraded to solid wood. See Wood Species for details of Select and Premium grades.
• Series 114 doors have 13/16" thick frames, 5/4 (1") thick frames available for most woods
• OPTIONAL square/round pegs can be added to the corners of most door styles doors, see Door Options
• Standard outside edge profiles 'A' through 'M' are available for 114 series doors

Panel and inside frame detail



Outside edge profile D shown on door



Line drawing of #114 door

Stile Width: 2-3/8"
Rail Width: 2-3/8"
Crossbar (Center Rail) Width: 2-3/8"
Center Stile Width: 2-3/8"
Minimum Door Size* (WxH): 11-1/8" x 10-1/4"
Minimum Trimmed Door Size* (WxH): 8-1/2" x 8-1/2"
Maximum Door Size (WxH): 26" x 96"
Extra Center Rail Required At: NA
Panel is Split: 50% bottom, 50% top and 50/50 side to side
Drawer Front Compliments This Door: #500 and #510
Glass or Open Frame Door Available: Yes
Solid Wood Panel Upgrade Available: Yes
* If one minimum is used from above specs, add 2" to other.
