113

Scherr's Cabinet & Doors 113 Style Doors. Shown here in Knotty White Pie with a 'K' outside profile.
  • Description
  • More Details
  • Specifications

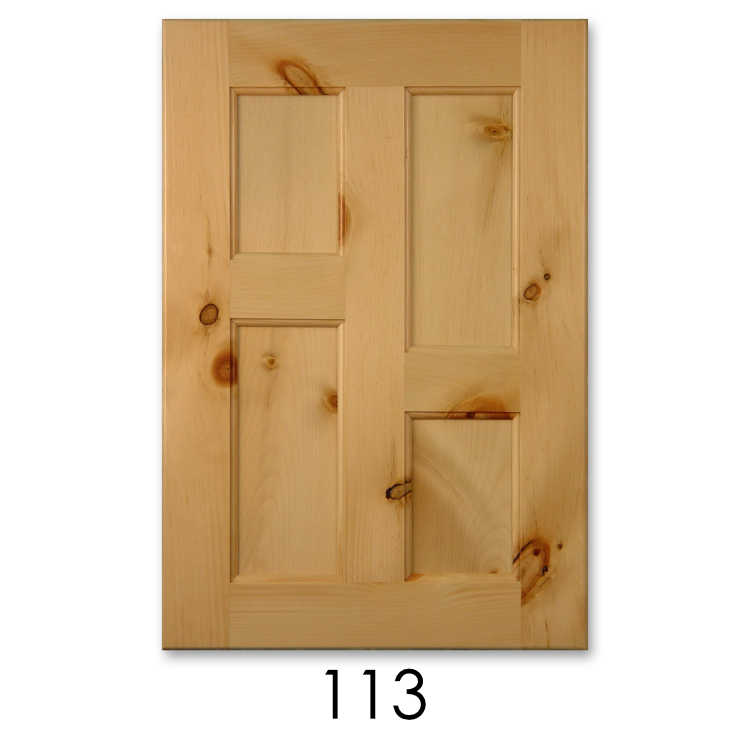

Door shown in White Pine Knotty with outside edge profile 'K'

Left hand door is shown in picture.

• Series 113 doors have solid wood frames with 1/4" plywood panels - solid wood panel upgrade is available
• The natural range of colors allowed in all wood species including limited amounts of sap and mineral streaks
• Select woods are available in most woods for a higher grade of color and grain match (Select White Pine only available with a 1/2" solid panel.) Premium woods are available for some woods, center panels have to be upgraded to solid wood.  See Wood Species for details of Select and Premium grades.
• Series 113 doors have 13/16" thick frames, 5/4 (1") thick frames available for most woods
• OPTIONAL square/round pegs can be added to the corners of most door styles doors, see Door Options
• Standard outside edge profiles 'A' through 'M' are available for 113 series doors

Panel and inside frame detail



Outside edge profile K shown on door



Line drawing of #113 door

Stile Width: 2-3/8"
Rail Width: 2-3/8"
Crossbar (Center Rail) Width: 2-3/8"
Center Stile Width: 2-3/8"
Minimum Door Size* (WxH): 11-1/8" x 12-1/8"
Minimum Trimmed Door Size* (WxH): 8-1/2" x 9-1/2"
Maximum Door Size (WxH): 26" x 96"
Extra Center Rail Required At: NA
Panel is Split: For left hand door (shown) the left panel is split 60% bottom / 40% top, the right panel is split 40% bottom / 60% top, a right hand door is opposite.
Drawer Front Compliments This Door: #500 and #510
Glass or Open Frame Door Available: Yes
Solid Wood Panel Upgrade Available: Yes
* If one minimum is used from above specs, add 2" to other.
