109

Scherr's Cabinet & Doors 109 Style Doors. Shown here in Lyptus with an 'M' outside profile.
  • Description
  • More Details
  • Specifications

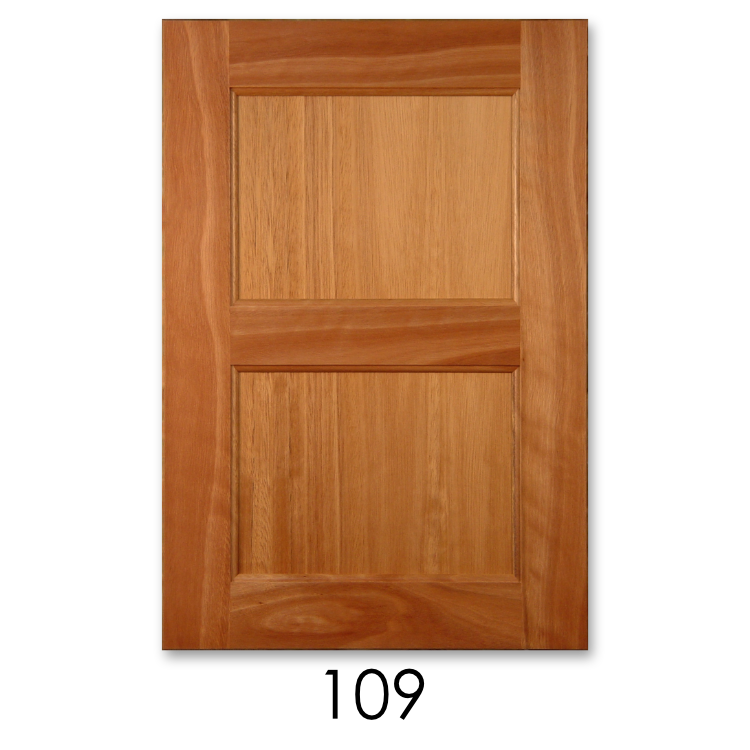

Door shown in Lyptus with outside edge profile 'M'

• Series 109 doors have solid wood frames with 1/4" plywood panels - solid wood panel upgrade is available
• The natural range of colors allowed in all wood species including limited amounts of sap and mineral streaks
• Select woods are available in most woods for a higher grade of color and grain match (Select White Pine only available with a 1/2" solid panel.) Premium woods are available for some woods, center panels have to be upgraded to solid wood. See Wood Species for details of Select and Premium grades.
• Series 109 doors have 13/16" thick frames, 5/4 (1") thick frames available for most woods
• OPTIONAL square/round pegs can be added to the corners of most door styles doors, see Door Options
• Standard outside edge profiles 'A' through 'M' are available for 109 series doors

Panel and inside frame detail



Outside edge profile M shown on door



Line drawing of #109 door

Stile Width: 2-3/8"
Rail Width: 2-3/8"
Crossbar (Center Rail) Width: 2-3/8"
Minimum Door Size* (WxH): 6-1/2" x 11-1/8"
Minimum Trimmed Door Size* (WxH): 4-3/4" x 8-1/2"
Maximum Door Size (WxH): 26" x 96"
Extra Center Rail Required At: NA
Panel is Split: 50% bottom panel, 50% top panel
Drawer Front Compliments This Door: #500 and #510
Glass or Open Frame Door Available: Yes
Solid Wood Panel Upgrade Available: Yes
* If one minimum is used from above specs, add 2" to other.
