Cabinets Assembled By You™

Drawer Tracks

The Following are our choices of drawer tracks for your cabinets



Blum 230m, Self-Closing 3/4 Extension Drawer Runners, 100 lb Rating
LIFETIME GUARANTEE!

The Blum series is the runner of choice when performance, function, and durability are desired. Features include:

  • Blumatic Self-Close/Stay closed action
  • Durable epoxy coated steel profiles, cream in color
  • Smooth and quiet nylon rollers
  • Bottom corner mounting
  • Captive right-hand profiles
  • Tolerance compensating left-hand profiles
  • Double warning stop with lock-out position
  • Exceeds BHMA Grade 1 requirement


Blum 430e Full Extension Drawer Runners, 100 lb Rating
LIFETIME GUARANTEE!

Blum 430e full extension runners enable total access to the drawer. Because the side clearance is the same as the Blum 230 runners, all drawer boxes can be the same width. Features include:

  • Smooth and quiet nylon rollers
  • Bottom corner mounting
  • Double captive profiles
  • Safety lock to prevent drawer removal
  • Intermediate profile lock out
  • 16 mm over-extension
  • Exceeds BHMA Grade 1 requirements


 KV 8450 Soft Close
Knape & Vogt 8450FM Full Extension Drawer Slide, 100 lb Rating

100 lb class drawer slide with best-in-class soft-close module features patented Force Management™ Technology that delivers the lowest opening pull force while ensuring effective dampening closure that eliminates drawer slamming

  • Full-Extension, telescoping slide
  • For 32 mm casegood construction
  • For commercial and residential furniture and kitchen cabinets
  • Low profile for shallow drawers
  • 1/2" Width, 1.79" Height
  • Soft-Close
  • Unhanded slides
  • Easy lever disconnect

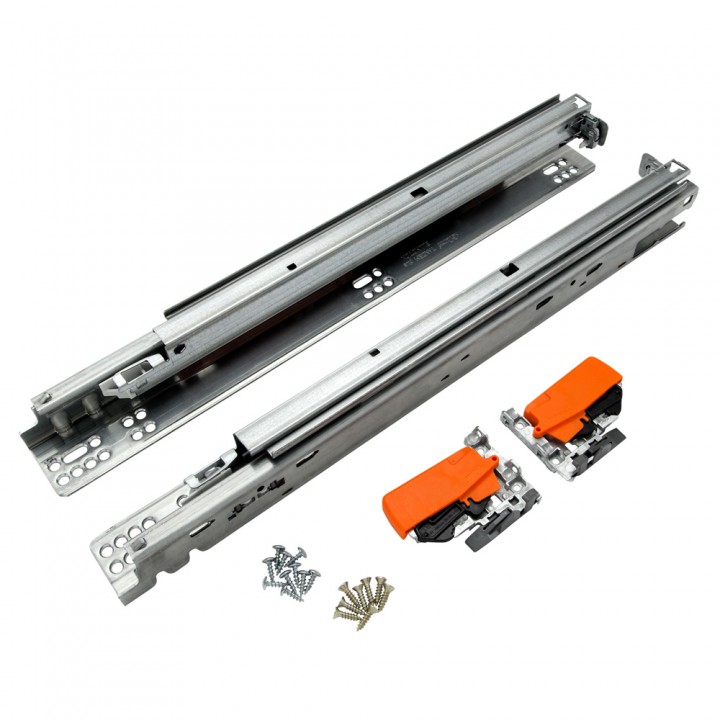

TANDEM Full Extension
Blum TANDEM Full Extension
LIFETIME WARRANTY

TANDEM is a top-of-the-line series of drawer runners offered by Blum. This versatile system mounts directly underneath to show off the craftsmanship of wood drawer instead of compromising their appearance with bulky hardware. Inside each drawer runner is a concealed mechanism containing 14 synthetic cylindrical rollers, that control vertical and horizontal forces and provide TANDEM's smooth and quiet running action.

Locking devices automatically engage and self-align when the drawer is installed. Simply place the drawer on the runners and close. To remove, squeeze the orange levers underneath and pull the drawer forward.

The BluMotion self-closing action is an important feature for the homeowner as well as the installer. In the home the drawer easily self-close at 2" from the cabinet. TANDEM runners stay retracted while the cabinet is handled. These and other numerous "Global Customer Benefits" make TANDEM the perfect choice for cabinets & furniture.

Tandem exceeds the ANSI/BHMA requirements for grade 1 performance in dynamic load capacity, cycle life and static loading. This means you can design drawer for pots and pans in standard or roll-out tray configurations with confidence. What's more, TANDEM is backed by the Blum Lifetime Warranty to assure performance for the long run. When you specify TANDEM runners, you've chosen the best!
