Open Frame Doors & Mullion Grids

Open Frame Doors without the panel, prepared for square glass or insert (not included.) The following door styles are available.





 • Series 100 doors (100 - 118 plus 140)
• Series 200 doors (200 - 218 plus 240)
• Series 400 doors (400 - 416 and 475 - 495)
• Series number 260 and 460 doors
• Series 600 doors
• Series 700 doors (700 - 718 plus 740)
• Series 800 doors (800 - 818 plus 840)
• Series 900 doors (900 - 918 plus 940)
• The following doors do NOT have the open frame option available:  Series number 125, 250 and 255.

 Mullion Grid frames will be constructed with equally spaced lites. Custom spacing or an odd number of lites in a frame are available, attach a drawing to your order. Available in the listed above Frame Only Doors.

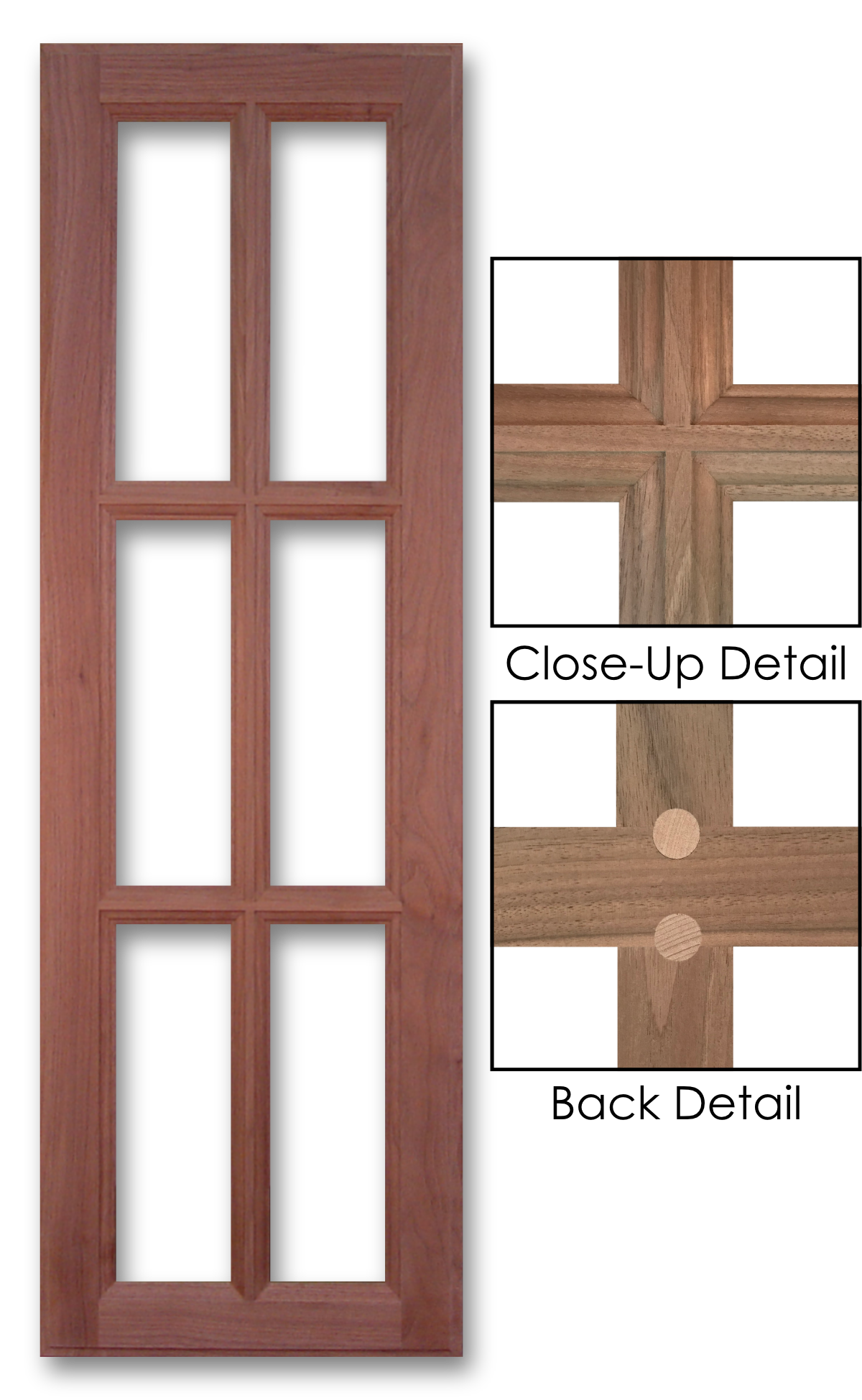

 700 Black Walnut Mullion Grid + Close-Up Details Front & Back

#700 Open Frame Walnut Door with 6-Lite Grid Shown

 • Mullions for Series 100, 200 and 400 frame styles
• Mullions for Series 700, 800 and 900 frame styles
• Mullions are stationary and cannot be removed.  The mullions are splined for added strength.
• Mullions are 1" wide on #100 and #200 doors.
• Mullions are 3/4" wide on #400 doors.
• Mullions are 1-1/4" wide on #700, #800 and #900 doors.
• Mullions for 600 series only for the doors 600, 602 and 604.
• ALL designs (100 through 900) are prepared for a one piece square glass or insert (not included.)





Inset Mullion Grids frames will be constructed with equally spaced lites. Custom spacing or an odd number of lites in a frame are available.

Mullion Grid for Doors Series #475, 476, 478 and 494-SW frames.





Glass Retainer, Vinyl or Wood An OPTIONAL Vinyl Glass Retainer molding or matching Wood Retainer is available to hold glass or insert into open frame doors.
