260

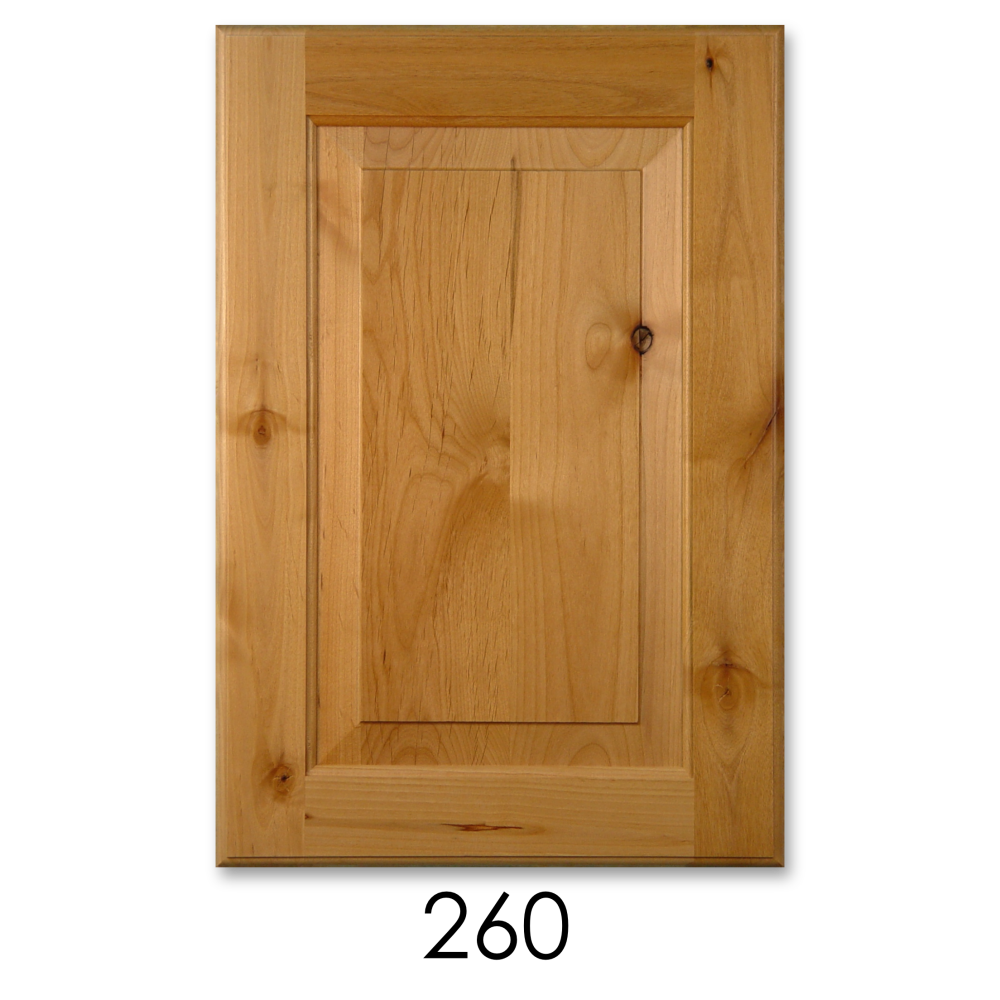

Scherr's Cabinet & Doors 260 Style Doors. Shown here in Rustic Red Alder with an 'I' outside profile.
  • Description
  • More Details
  • Specifications

#260 Door Style has a "Traditional" panel profile instead of "Cove"

Door shown in Rustic Red Alder with outside edge profile 'I'

• Series 260 doors are constructed of 100% solid wood
• The natural range of colors allowed in all wood species including limited amounts of sap and mineral streaks
• Select woods are available in most woods for a higher grade of color and grain match. Premium woods are available for some woods. See Wood Species for details of Select and Premium grades.
• Series 260 doors have 13/16" thick frames, 5/4 (1") thick frames available for most woods
• OPTIONAL square/round pegs can be added to the corners of most door styles doors, see Door Options
• Standard outside edge profiles 'A' through 'M' are available for 260 series doors

• NOTE: this door has a different panel within the frame compared to the other 200 Series doors! See 'Panel & Inside Frame Detail' in the 'More Details' tab.



Panel and inside frame detail



Outside edge profile I shown on door



Line drawing of #260 door

Stile Width: 2/3/8"
Rail Width: 2-3/8"
Minimum Door Size* (WxH): 7-3/4" x 7-3/4"
Minimum Trimmed Door Size* (WxH): 6" x 6"
Maximum Door Size (WxH): 26" x 96"
Extra Center Rail Required At: 48"
Drawer Front Compliments This Door: #500 and #526
Glass or Open Frame Door Available: Yes
* If one minimum is used from above specs, add 2" to other.
