213

  • Description
  • More Details
  • Specifications

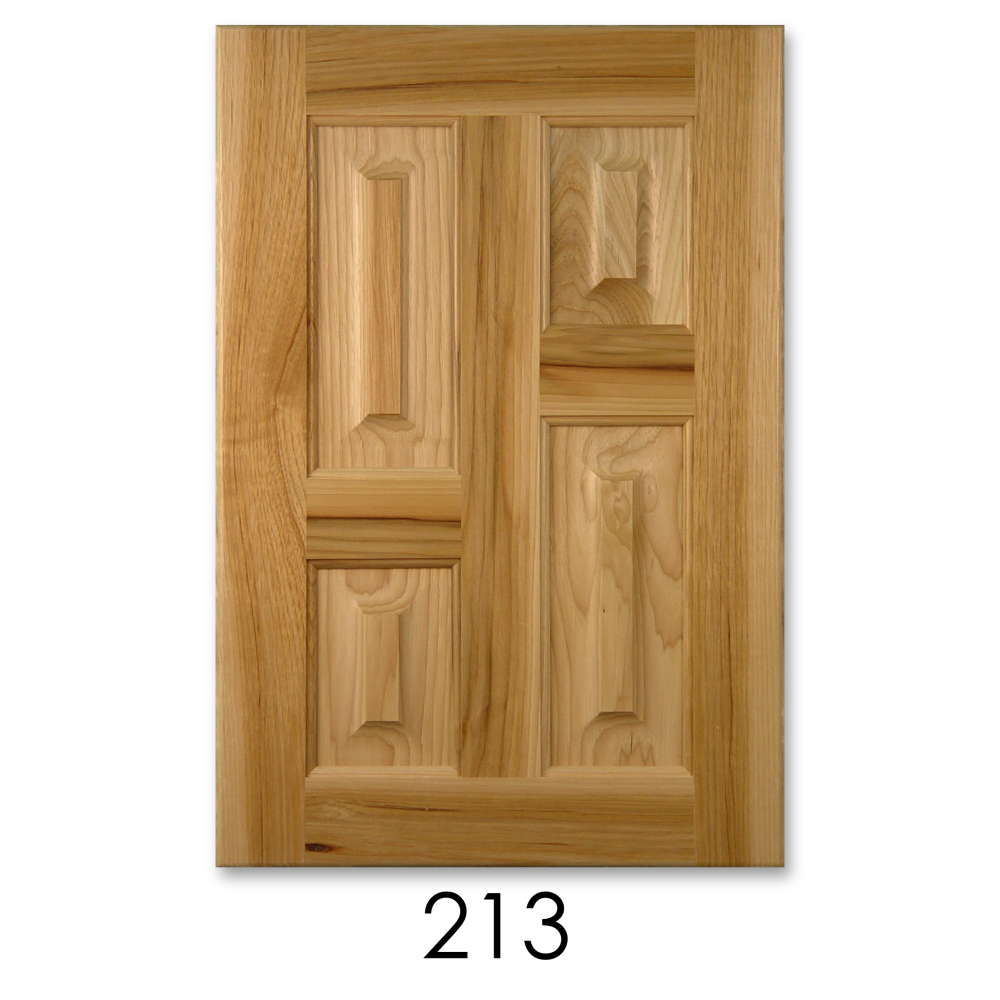

Left hand door is shown in picture.

Door shown in Hickory with outside edge profile 'K'

• Series 213 doors are constructed of 100% solid wood
• The natural range of colors allowed in all wood species including limited amounts of sap and mineral streaks
• Select woods are available in most woods for a higher grade of color and grain match (Select White Pine only available with a 1/2" solid panel.) Premium woods are available for some woods, center panels have to be upgraded to solid wood. See Wood Species for details of Select and Premium grades.
• Series 213 doors have 13/16" thick frames, 5/4 (1") thick frames available for most woods
• OPTIONAL square/round pegs can be added to the corners of most door styles doors, see Door Options
• Standard outside edge profiles 'A' through 'M' are available for 213 series doors

Panel and inside frame detail



Outside edge profile K shown on door



Line drawing of #213 door

Stile Width: 2/3/8"
Rail Width: 2-3/8"
Crossbar (Center Rail) Width: 2-3/8"
Center Stile Width: 2-3/8"
Minimum Door Size* (WxH): 13-1/8" x 15"
Minimum Trimmed Door Size* (WxH): 10-1/2" x 12-3/8"
Maximum Door Size (WxH): 26" x 96"
Extra Center Rail Required At: NA
Panel is Split: For left hand door (shown) the left panel is split 60% bottom / 40% top, the right panel is split 40% bottom / 60% top, a right hand door is opposite.
Drawer Front Compliments This Door: #500 and #520
Glass or Open Frame Door Available: Yes
* If one minimum is used from above specs, add 2" to other.
