#200

#200, Select Cherry, "D"
  • Description
  • More Details
  • Specifications

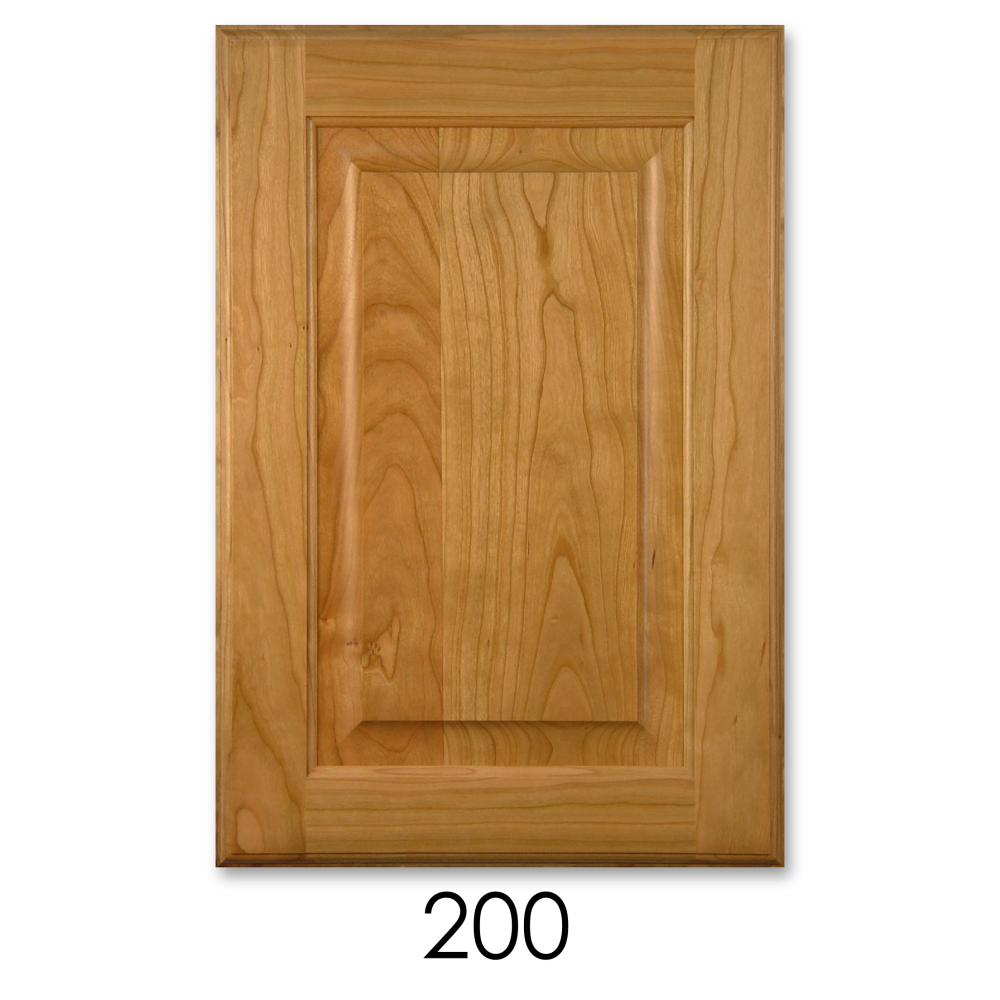

Door shown in Select Cherry with outside edge profile "D"

• Series 200 doors are constructed of 100% solid wood.
• The natural range of colors allowed in all wood species including limited amounts of sap and mineral streaks.
• "SELECT" woods are available in most woods for a higher grade of color and grain match (Select White Pine only available with a solid panel).  “PREMIUM” woods are available for some woods, center panels have to be upgraded to  solid wood.  See Wood Species for details of Select and Premium grades.
• Series 200 doors have 13/16" thick frames, 5/4 (1") thick frames available for most woods.
• OPTIONAL square/round pegs can be added to the corners of most door styles doors, see Door Options.
• Standard outside edge profiles “A” through “M” are available for 200 series doors.

Panel and inside frame detail



Outside edge profile D shown on door



Line drawing of #200 door

Stile Width: 2/3/8"
Rail Width: 2-3/8"
Minimum Door Size* (WxH): 7-3/4" x 7-3/4"
Minimum Trimmed Door Size* (WxH): 6" x 6"
Maximum Door Size (WxH): 26" x 96"
Extra Center Rail Required At: 48"
Drawer Front Compliments This Door: #500 and #520
Glass or Open Frame Door Available: Yes
* If one minimum is used from above specs, add 2" to other.
